Duramin-160

The high-end Rockwell hardness tester for immediate results, with load cell technology for high precision.

Duramin-160

  • Rockwell hardness testing
  • High-end Rockwell hardness tester with high precision
  • Load ranges: 1 kgf – 250 kgf (9,8 N– 2452,5N)
  • Suitable for multiple sample sizes
  • Fully automated test cycle
  • Built-in report manager
  • Intuitive 6.5” touchscreen
  • Optional motorized Z-axis

A high-precision Rockwell hardness testing machine for immediate results with an option to measure HVT and HBT. High-precision load cell technology means that Duramin-160 delivers even higher precision than required by standards. Suitable for various sample sizes and shapes, particularly eligible for metallic materials. Can be used for more advanced tests such as the Jominy test. Duramin-160 is operated via an integrated touchscreen, and it is optionally available with a motorized Z-axis.

Request a quote

Ultimate Accuracy by High-Precision Load Cell Technology

Duramin-160 delivers even higher precision than required by standards. This Rockwell hardness testing machine is based on a load cell system, where test loads are applied via a closed loop control unit with a load cell, a DC motor, and electronic measurement. This way, you will never experience the over- and under-shoot that is common in deadweight systems, ensuring maximum repeatability and reproducibility.

Fully Automated Test Cycle Takes Reproducibility to a Maximum

The entire test cycle of applying load and evaluating hardness is fully automated. This improves reproducibility to a maximum, as operator influence is minimized, and it saves you time.

Create Immediate Reports with Intuitive Touchscreen for All User Levels

Duramin-160 displays data on the touchscreen from which you can easily generate complete reports with results, statistics, and customized comments. Export your data in various formats via a network or USB stick. All generated data is always accessible for review.

See more benefits in the brochure

Key Features That Allow You High-End Rockwell Hardness Testing

  • Display model closeup 65 inch touchscreen

    6.5-inch touchscreen offers an intuitive interface for every user level

    All the functions you need are available in the main display window – main menu, test settings, test results, additional results, visual of the process, functions, and dashboard control. The interface is so easy to use that all levels of users can operate it.

    6.5-inch touchscreen offers an intuitive interface for every user level
  • Built in report manager

    Built-in report manager generates complete data reports to easily export

    Customize the exact reports that fit your needs. You can easily generate reports on screen, convert them to PDFs, and save them on your USB stick.

    Built-in report manager generates complete data reports to easily export
  • Different user profiles

    Create different user profiles to restrict or allow different privileges

    You can control the privileges of the users to ensure that the same settings are used for every measurement. The main profile ensures that only one super user controls the main settings.

    Create different user profiles to restrict or allow different privileges
  • Color Coded Limits

    Color-coded hardness limits for easy recognition of values within or outside your specified limits

    You will immediately know if your results are approved or not. If your hardness value is outside of the specified limits, it is displayed with the color red. If the hardness value is within the range of specified limits, it is displayed with the color green.

    Color-coded hardness limits for easy recognition of values within or outside your specified limits
  • Irregular samples High precision load cell

    High-precision load cell delivers even higher precision than required by standards

    The advanced closed loop cell system ensures constant feedback and constant control of the load application to ensure the highest precision and repeatability.

    High-precision load cell delivers even higher precision than required by standards
  • Versatile sample holders

    Versatile Rockwell hardness testing accessories such as sample holders and anvils for workpieces in all shapes

    You have access to a wide range of sample holders and anvils, to ensure that your testing needs are always met. And if you need a custom-made sample holder, we will build it for you.

    Versatile Rockwell hardness testing accessories such as sample holders and anvils for workpieces in all shapes
  • Right Ergonomic motorized Zaxis

    Ergonomic, motorized Z-axis frees you from manual adjustment. Your state of health will thank you

    The Z-axis is of particular assistance if you perform many tests and want to relieve yourself or your co-worker from the repeating manual movement to position the hardness tester’s spindle. This also frees your hand for controlling the sample while positioning it.

    Ergonomic, motorized Z-axis frees you from manual adjustment. Your state of health will thank you
  • Test area ilumination

    Test area illumination provides a clear view of the sample

    You are provided with a much better view of the test area by the test area illumination. This is a particular advantage when you do several tests on the same sample and want to make sure that you work with the correct gap between tests.

    Test area illumination provides a clear view of the sample
  • HBT og HVT

    Option to measure HVT and HBT for you who want the freedom to use other methods

    Duramin-160 will provide you with a Vickers or Brinell result, using depth measurement methods. A great advantage for you who occasionally use Vickers or Brinell as a testing method, but don’t need the degree of precision and don’t want to spend as much time as you would on a comprehensive Vickers or Brinell test. This is an optimal option for you who provide estimates on hardness in a production line.

    Option to measure HVT and HBT for you who want the freedom to use other methods

Facts

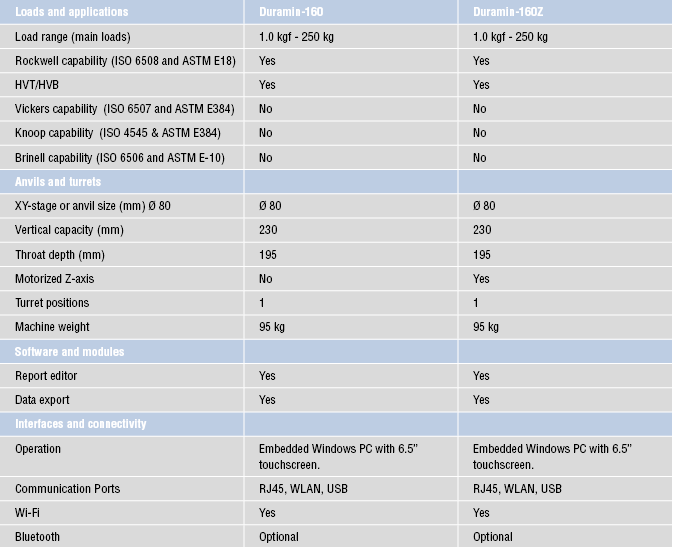

Model types

Duramin-160

Duramin 160
Duramin-160 is available in two versions.

Duramin-160

High-precision load, cell-based Rockwell hardness tester with key features such as a fully automated test cycle, intuitive 6.5” touchscreen, a built-in report manager, LED illumination of the test area, and the option to measure HVT and HBT.

Duramin-160 Z

High-precision load, cell-based Rockwell hardness tester with key features such as a fully automated test cycle, intuitive 6.5” touchscreen, a built-in report manager, LED illumination of the test area, the option to measure HVT and HBT, and including an ergonomic, motorized Z-axis.
Magnutom 5000 model types

Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards. Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.

Get Your Technical Data Sheet for Duramin-160

A short and clear description that provides you with an immediate overview to help you make the best choice of Rockwell hardness testing equipment.

Capacity and performance specifications
• Dimensions and weight
• Electrical data
• Noise levels
• Safety

Get Technical Data Sheet now
Technical data sheets for the metallographic equipment for the sample preparation process from Struers

Get Your Brochure for Duramin-160

Get the full introduction, descriptive visuals, and key feature descriptions to help you qualify your choice of Rockwell hardness testing equipment.

• Explanatory photos
• Key feature descriptions
• Technical Data Sheet

Get brochure now
Cutting, mounting, grinding, polishing and verification brochures for the metallographic equipment for the sample preparation process from Struers
