Metallographic mounting equipment and consumables for hot and cold mounting

The metallographic mounting process plays a pivotal role in the analysis of metallography, as appropriate mounting guarantees that specimens are firmly secured, correctly aligned, without gaps between specimen and mount material.
A quality mount ensures an efficient grinding and polishing process without the risk of reworks due to contamination between process steps.
Hot or cold mounting: Which one for your specimen
Selecting the optimal mounting solution for you, you must consider several factors. The most important ones are often:
- Edge Retention – Prevents rounding for precise analysis.
- Material Sensitivity – Cold mounting protects heat/pressure-sensitive samples.
- Conductive Mounting – Essential for SEM to avoid sample charging.
Selecting the right method ensures optimal results.

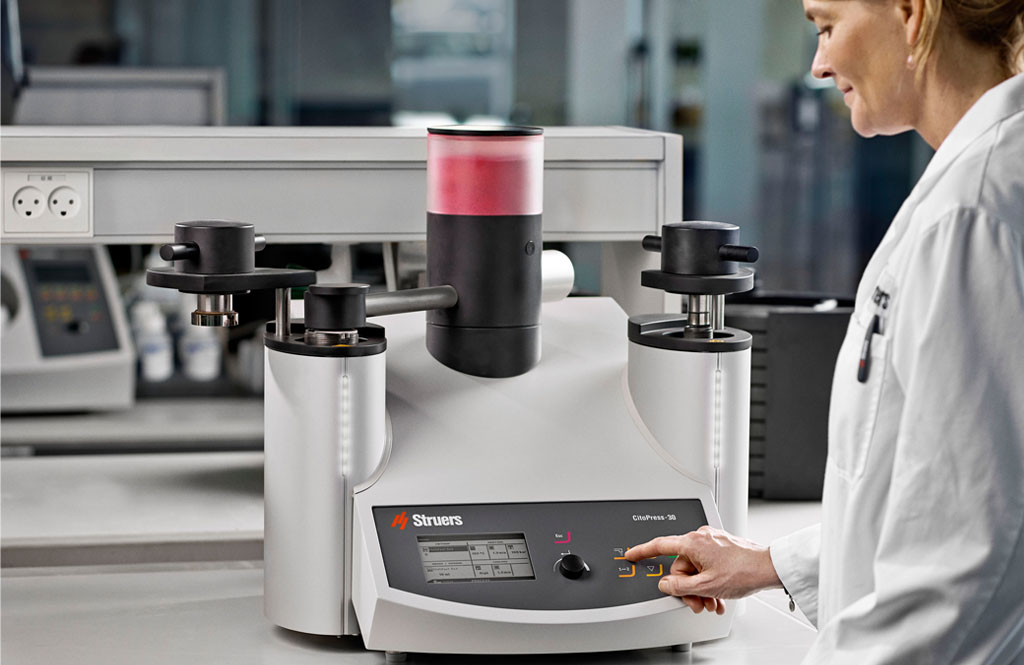

Hot mounting: CitoPress presses and hot mounting resins
- Excellent edge retention on all materials - including very hard materials
- Best option for electronically conductive mounts
- Faster than cold mounting
- Best solution for a plane mounted surface
We provide a full range of hot mounting equipment, consumables, and accessories to deliver excellent edge retention, and short process times when working with hard materials.

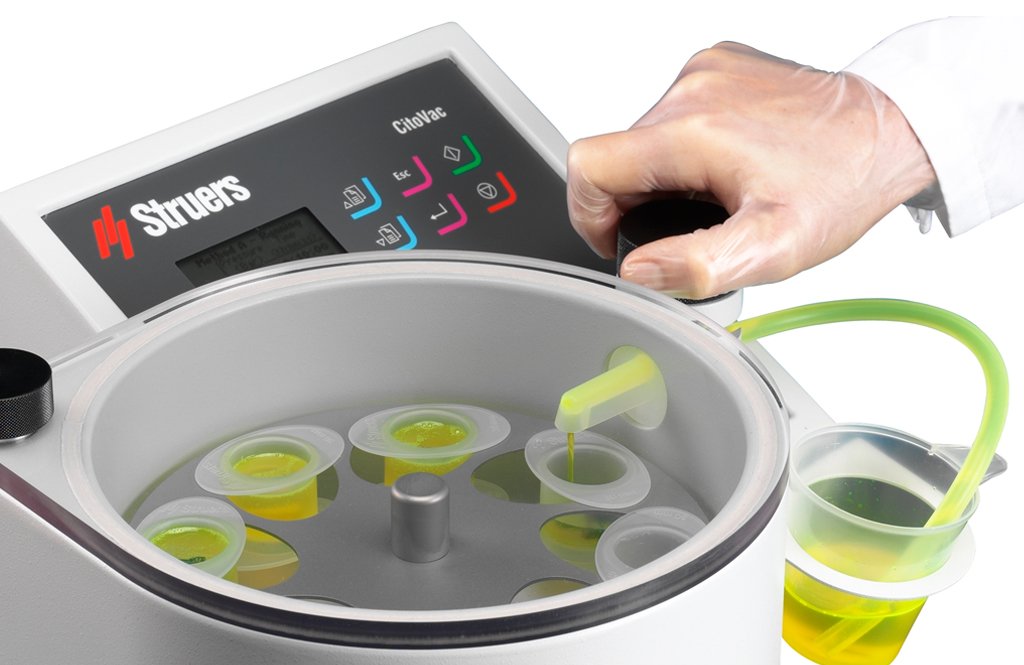

Cold mounting: Epoxy and acrylic resins and CitoVac
- Excellent edge retention on most materials
- Best solution for heat or pressure sensitive samples
- Only choice for fluorescent dyeing
From vacuum impregnation units to chemically resistant resins, we provide a full selection of cold mounting equipment, consumables, and accessories for fast mounting and repeatable results.
