Methods: Vickers, Knoop, Brinell and Rockwell hardness testing
Load ranges: 1-250 kgf, 3-750 kgf, 5-3000 kgf
Semi-automatic universal tester
Robust load cell-based universal tester
Automatic six-position turret
Ring-light with dark field illumination for the testing of soft metals
Optional motorized Z-axis for large samples
Embedded PC, operated by mouse or touchscreen
Duramin-600 is designed to survive the toughest production environment. It is a universal hardness tester, operated by a robust touchscreen, and comes available in three load ranges and with an optional motorized Z-table for larger samples.
Designed to last, the Duramin-600 employs industry strength components from the 400 kg frame to the display.
Easy to operate
Simple clamping, combined with clean software and a touchscreen, ensure stress-free operating and result reporting.
High accuracy
The accurate and repeatable loading system based on load cell technology, combined with advanced software algorithms, ensures specific and repeatable image and hardness evaluation.
Perfected for the production environment
Easy to operate
High accuracy
KEY FEATURES
Simple testing
Duramin-600 is available with a six-position automatic turret, facilitating exchange of up to three indenters and three objective lenses. The exchange of indenter and lens runs fully automatically in each model, helping to avoid calibration and potential human errors.
Simple testing
Motorized Z-axis
Duramin-600 is available with an optional motorized spindle. This avoids the repetitive manual adjustment of the test anvil.
Motorized Z-axis
Robust frame
The Duramin-600 is built using a rigid metal frame that is ideal for rough conditions.
Robust frame
Flexible clamping
A variety of clamping devices and fixtures are available.
Flexible clamping
Built-in touchscreen
Duramin-600 is operated from a large 15-inch color touchscreen.
Built-in touchscreen
Data exporting function
Measurement data can be exported in various formats and saved on a USB stick or network.
Data exporting function
Built-in report generator
Test reports and measurement data can be easily generated and exported.
Built-in report generator
Optimal safety
The machine automatically stops in the event of a work piece collision or any unexpected vibration or movement. This prevents damage to indenters and secures safety for operators.
The Duramin-600 models come with a motorized, six-position turret, automatic illumination adjustment, auto focus, and automatic image evaluation as standard. The maximum sample height is 330 mm, with a throat depth of 260 mm. Duramin-600 is operated via a 15-inch color touchscreen. Objective lenses and indenters are ordered separately. All Duramin-600 M models come with manual Z-axis adjustment. All Duramin-600 Z models come with a motorized Z-axis adjustment.
Duramin-600 M1
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 9.8 N to 2450 N (1-250 kgf).
Duramin-600 M2
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 29.4 N to 7,360 N (3.0-750 kgf)
Duramin-600 M3
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 49.1 N to 29,430 N (5.0-3,000 kgf)
Duramin-600 Z1
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 9.8 N to 2450 N (1-250 kgf).
Duramin-600 Z2
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 29.4 N to 7,360 N (3.0-750 kgf)

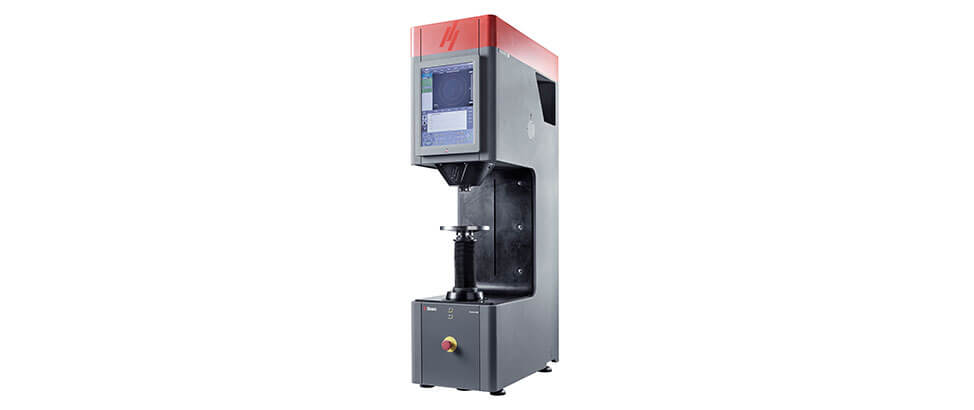

Duramin-600 Z3
Universal hardness tester with load cell technology for the automatic hardness testing of Brinell, Vickers, Rockwell, and Knoop With an extended load range of 49.1 N to 29,430 N (5.0-3,000 kgf)
Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards. Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.
